Microcontrollers - "computers on chips" as they are often termed, are among the most widespread, varied and flexible electronic control devices around. The number of applications they fulfil are vast, and increasing daily.

The PIC family - the Programmable Interface Controller, manufactured by Microchip, has been growing rapidly in popularity. The devices themselves are low cost, and for smaller companies, the investment required to start using PICs is less than with other microcontroller families.

Until now, there has been no easy way into training and evaluation in the PIC world, and our new PIC Trainer is therefore filling a widespread demand from many of our customers.

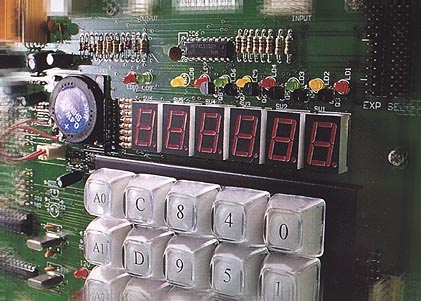

  • Hardware:

  • One piece of hardware contains both the PIC16C84 programmer and 12 pre-wired applications for use with the accompanying experiment programs making use of the following features:
  • PIC16C84 with program and data EEPROM memory
  • Customisable 20 key keypad
  • Six 7-segment displays
  • 10 coloured LEDs
  • Output for connection of Solid State Relay
  • Connector providing all port A lines as input
  • Connector providing all port B lines as output
  • Software
  • Microchip Technology's MPASM cross assembler software
  • PIC programming software
  • Documentation
    The excellent documentation has been written to provide a complete instruction to using the PIC microcontroller.

    It discusses PIC device features compared with other types of microcontroller, covering topics such as Harvard Architecture and the PIC's RISC like instruction set.

    It covers the various types of PIC, including the PIC16C5X, PIC16CXX and PIC17CXX groups - and the applications for which each separate device might be selected.

    It tells you how to use both the programming software and the Microchip MPASM cross assembler.

    It takes you through a series of 12 experiments, with their program listings, based on the PIC Trainer's pre-wired circuits using the PIC16C84 EEPROM microcontroller.

  • Experiment List:
  • Example 1 - Seven Segment display
  • Example 2 - LED light control
  • Example 3 - Timer control
  • Example 4 - Sound Generation (a simple electronic organ)
  • Example 5 - Dual numerical timer (7 segment scan and decimal adjust.)
  • Example 6 - Display and keyboard scan (6 x 7 segment and 16 key keypad)
  • Example 7 - Simple Calculator
  • Example 8 - Interrupts (external interrupt and timer)
  • Example 9 - Digital clock
  • Example 10 - Power down mode
  • Example 11 - Electronic Lock
  • As you can see, it's a pretty thorough board with loads of support material (as you'd expect from Flight Electronics). All the external hardware needed is on the trainer, so you'll find a speaker, a keyboard, a number of seven segment displays and all the PICs pins are brought out to connectors, for easy interfacing to other devices.

    The PIC is linked to the PC via the parallel port and power is received through one of the standard Flight power adapters.
