All sorts of MBS are hardware that do not need to install any software drivers and/ or other network software (e.g. NOVELL, WINDOWS NT......) to activate, just plug and play, i.e. no memory space/ no setting jumper/ no DMA/ no I/O is taken in PC, and thus the problems of conflicts between software do not exist. Therefore, you can use any O/S and application software, and install any network with MBS according to your requirements.　

MBS--Education Winner　　　　　　　　 Using a Control Panel goes with the EXTERNAL Control Box installed at each student's PC. Without opening PC case in order to saves the installation time and eliminates the problems of whose respnsibility being on when maintaining the broken PC caused by opening it.

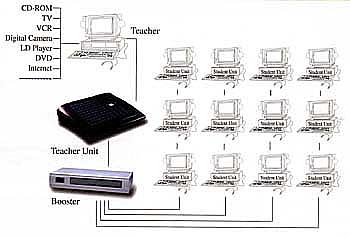

Connection:

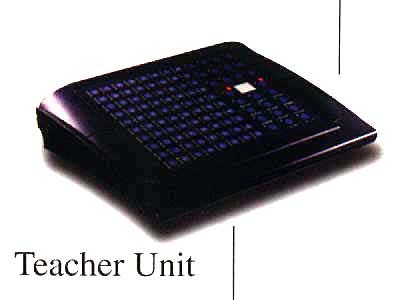

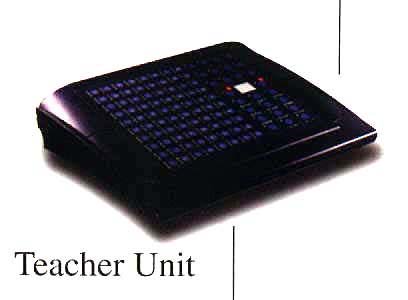

TEACHER UNIT: (Control Panel)

• Membrane keypad designed with beep prompt.
• 23 function keys and 3 spare keys.
• 80 individual student keys with status indicating: on/ off line, master, selected, help or controller.
• LED display indicating observation duration.
• 2 line-in, 1 microphone and 1 headphone jacks.
• 1 Aux. monitor port for observation, and 1 printer port for taking attendance on line.
• Keyboard, mouse, and monitor interface ports for teacher's PC.
• 2 bus ports, to connect one to the BOOSTER, or the both can be connected to 10 stations with a daisy chain.

• Support to set up four/ eight columns of student stations for a big classroom, and each column can be connected to as many as 10 stations with a daisy chain. (Max. 80 Students in classroom)

• 1 line-in, 1 help, 2 microphone and 2 headphone jacks, enable two students to share one PC.
• Bus cable in/ out ports; keyboard, mouse and monitor interface ports for student's PC.

• 2919 25-pin male-to-female coaxial cable.

Functions:

Broadcast (Uni-Directional)
the screen, audio, video and microphone signal from the teacher's or any selected student's PC to all the students or selected student's PC.

Transfer
the screen, audio, video and microphone signal from the teacher's/ any selected student's station to all the students.

Scan/ Observe
all/ the selected student stations' screens, audio and microphone in automatic sequence. The action of scanning can stay at each one for 1~99 seconds, and may pause at any one.

Darken
all/ the selected student stations' screens.

Communicate (Bi-Directional)
with all/ the selected students on line through headsets, without transmitting screens and video or when executing Broadcast, Transfer, Scan, Observe and Darken.

Lock
the student(s)' keyboard(s) and mice when executing Broadcast, Transfer, Scan, Observe and Darken.

Teacher Control
the master student's keyboard and mouse.

Student Control
the teacher/ master student's keyboard and mouse.
